EVE™ PLUS Automatic Cell Counter
NE-EVE-MC2
EVE™ PLUS is the 2nd generation of EVE™, an image based automated cell counter. The EVE™ PLUS is a benchtop automated cell counter that performs cell count and viability measurements using trypan blue solution. It is comparable to the nucleus counting method with PI (Propidium Iodide) for all cell lines with accuracy and precision. EVE™ Plus also identifies and counts cell agglomertes as several individual cells for accurate analysis.
- Less than 1 s for cell counting (world´s fastest automated cell counter)
- NEW: Autofocus (< 10 s for cell counting)
- Easy to use
- More accurate by improved hardware and counting algorithm
Product Details
Description

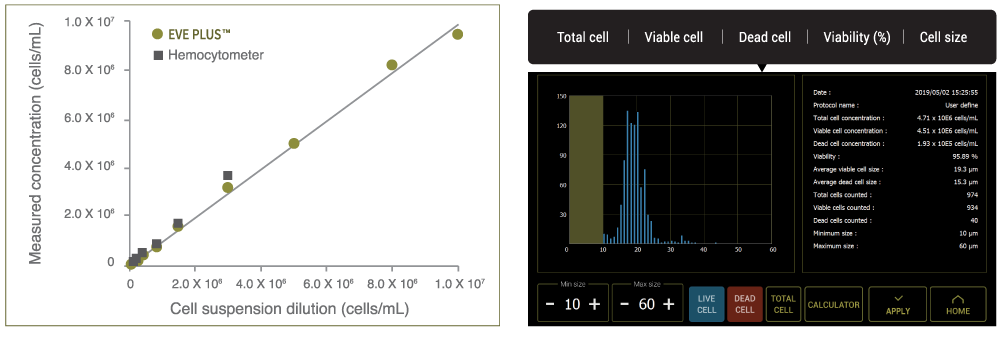

Image 1:
(left) Measuring from the EVETM Plus extends further to higher concentration ranges than hemocytometer readings.
(right) EVETM Plus easures the number and the concentration of total cells, viable cells, dead cells. It provides viability results and cell size gating.

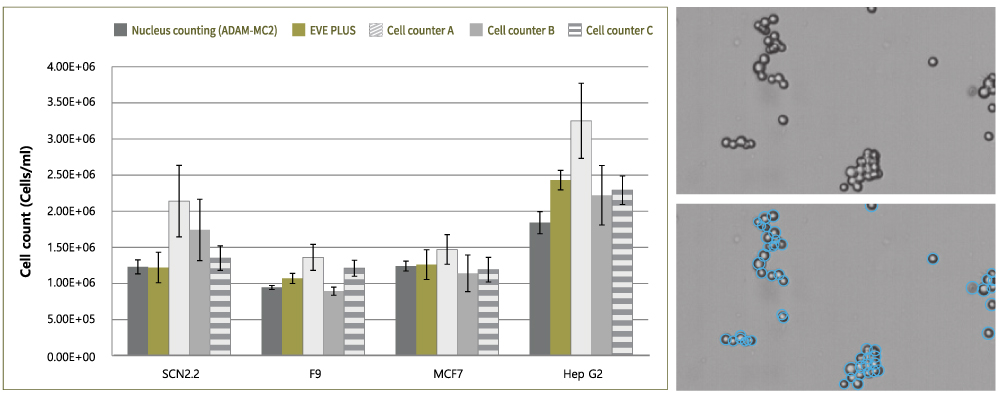

Image 2:
Clumped cells were counted with EVE™ Plus, ADAM-MC2 (the nucleus cell counter), and other manufacturers’ automated cell counter (A, B, and C).
ADAM-MC is accurate in counting clumped cells by counting the stained nuclei through the PI (Propidium Iodide) staining method. EVE™ Plus is comparable to the nucleus counting for all cell lines with accuracy and precision.
The other automated cell counters A, B, and C show inaccurate numbers with clumped cells. EVE™ Plus identifies and counts the individual cells within the clumpy cells for accurate analysis.
To obtain the best results, follow these recommendations:
- Wear Protective gloves during sample handling.
- Do not touch the optical surfaces of the EVE™ Cell counting slides. Hold the cell counting slides by the edges.
- Use the EVE™ PLUS at room temperature only (5 - 40 °C).
- For accurate viability count results, ensure the counting area is covered with cell suspension and count cells within 3 minutes
- of mixing the cells with trypan blue solution as trypan blue is toxic to cells.
- For best data with biological samples, we recommend counting at least two samples and taking an average.
- The calibration completed EVETM PLUS will be supplied. If necessary, recalibrate your instrument.
- The EVE™ PLUS storage holds up to 500 data. If need a test report, save the data to the USB drive whenever you want. You
- may transfer the data to your PC, using the USB drive as described in transferring data to a PC.
- After using EVE™ PLUS, appropriately dispose slides as biohazardous waste.
- Do not reuse the cell counting slides.
Cell line validated on EVETM Plus
| Cell type | Animal | Organ | Growth Properties |
| HeLa | Human | Skin | Adherent |
| NIH-3T3 | Mouse | Embryo | Adherent |
| U-2 OS | Human | Bone | Adherent |
| Jurkat | Human | Blood | Suspension |
| KG-1 | Human | Blood | Suspension |
| HEPG2 | Human | Liver | Adherent |
| HEP3B | Human | Liver | Adherent |
| LNCaP | Human | Prostate | Adherent |
| SH-S5Y | Human | Brain | Adherent |
| SCN2.2 | Rat | Brain | Adherent |
| F9 | Mouse | Embryo | Adherent |
| MCF7 | Human | Breast | Adherent |
| A549 | Human | Lung | Adherent |
| GH3 | Rat | Pituitary | Adherent |
Cell Concentration Range: 1x10^5 - 4x10^6 cells/ml (optimum)
More Information
| Manufacturer |
NanoEnTek
|
|---|---|
| Cell Size Range | 5 - 60µm |
| Dimensions | 27(L) x 20(B) x 9(H)cm |
| Electrical Supply | 240V, 50-60Hz |
| Packing Unit | 1 EVE Cell Counter, 50 Slides, 1ml Trypanblau, 2GB USB Speicher mit PC Software und digitaler Gebrauchsanweisung (en), gedruckte Gebrauchsanweisung (en), Analysezertifikat |
| Weight | 0.000000 |
-
Starting at €78.00 €92.82
The EVE™ cell counting slides contain two chambers. This allows measurement of two different samples or to perform a reference test of the same sample. Each kit includes 1,5ml Trypan Blue Solution (0,4%) per 50 slides. The kit is fully compatible with Countess® automated cell counters.
Starting at €78.00 €92.82
