Colloidal Compounds and Conductive Adhesives

(7)

Please find here a comparative table of available conductive silver paints.

The corresponding safety datasheets for the following products can be found here.

    • Art.Nr: MN12644-02

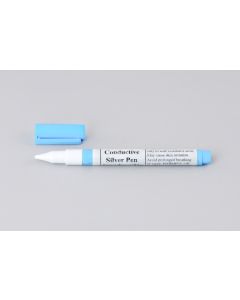

      For the fast painting of instant conductive silver traces, e.g. on REM-samples or circuit boards. Dries in 20-30 minutes at room temperature. The conductive silver ink contains 39-45% silver particles ( approx. 10 microns). The thinner that is used for this pen is Butyl Acetate..
      • Starting at

        Conductive Silver AG15 shielding lacquer is designed to provide electromagnetic compatibility (EMC). It replaces all discontinued shielding coatings that had contained silver-plated copper and is compatible with plastics commonly used for electronic equipment enclosures. Further it is widely used as conductive lacquer in electron microscopy.

        Starting at

        • Art.Nr: MN12642-14

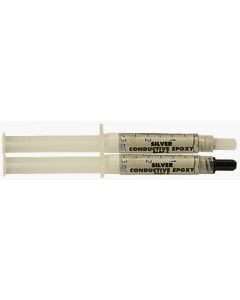

          A two component conductive silver epoxy kit that is fast-curing within 15 minutes at 65°C. Sufficient conductivity and mechanical properties for non-critical applications.
          • Starting at €19.10 €22.73

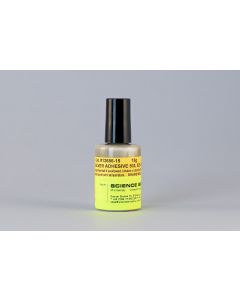

            Silver Conductive Adhesive 478SS is a conductive, silver-based polymer which is used for thick film coatings where liquid silver is not recommended. It offers a very high Tg (glass transition temperature) of 67°C to prevent blocking and offers superior adhesion to polyester film. Adhesive 478SS can be cured at 93°C within 15 minutes.

            Starting at €19.10 €22.73

            • €109.20 €129.95
              Art.Nr: E12684-15
              The acrylic Silver Conductive 18DB70X is a low VOC (Volatile Organic Compounds) coating suitable for EMI (Electromagnetic Interference) and RFI (Radiofrequency Interference) shielding protection. It is a direct substitute for the discontinued Silver Conductive Fluid 416.
              €109.20 €129.95
              • Starting at €21.30 €25.35

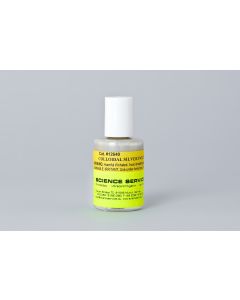

                Colloidal Silver Paste is a lacquer based clear, highly viscose conductive formulation. It is ideal for applications where a non-flowing conductive substance is required. The Silver Paste has an average grain size of less than 1 µm and a silver content of 60%. Easily applied with a micro spatula or wooden toothpick.

                Starting at €21.30 €25.35

                • Starting at €21.30 €25.35

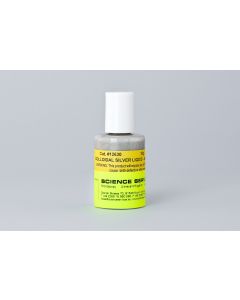

                  Colloidal Silver Liquid is a fast air-drying formulation on basis of 1-Methoxy-2-propanol used to convert a variety of electrically and thermally non-conductive surfaces to conductive surfaces for many applications. The Silver Liquid has an average grain size of less than 1 µm and a silver content of 60%. A brush attached to the cap is included.

                  Starting at €21.30 €25.35

                In our portfolio you find a variety of conductive liquids and adhesives, such as colloidal compounds from silver, gold or carbon. The available viscosities are from liquid to paste-like, dependent on the colloidal compounds and the base medium used. Depending on your application you may choose from more or less fast curing conductive adhesives in many forms (one/two components, paint- or spray-able, pens with different tips) and their thinners.

                In case you have any questions regarding our conductive paints and colloidal compounds or you can´t find a product please do not hesitate to contact us: info@scienceservices.de

                A comparative table of available conductive silver paints you find here.
