Starting at
Price on requestStarting at
Price on requestThe FlipScribe is a manual scribing tool for backside scribing of substrates (e.g. wafer) and allows viewing of the substrate front side for accurate adjustment of the scribing position. It is a compact, stable and precise tool for fast scribing and cleaving and is suitable for a variety of materials: e.g. Si, sapphire, GaN, glass, SiC. The maximum substrate size is a 4 inch / 100mm wafer.
-
-
The Wafer Cleaving Kit XL contains all components of the Wafer Cleaving Kit Standard (E7642) and in addition the Lattice Scriber with a premium quality diamond tip and a pair of small sample cleaving pliers.
-
-
Starting at €391.20 €465.53

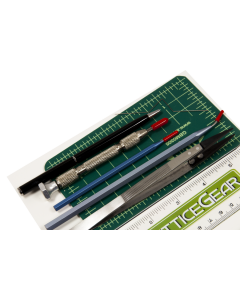

A complete set of tools for clean cleaving of wafers into strips and small pieces. With this set good cut cross-sections are achieved. The Wafer Cleaving Kit Standard consists of three diamond scribers, tweezers, a small and large (optional) cutting mat and a pair of pliers.
-
Info, Media & Downloads
Bestseller
-
€63.60 €75.68The Small Sample Cleaving Pliers cleave samples into pieces from 1 - 30mm. Nylon jaws prevent sample damage and the included scribe alignment indicators increase the accuracy of cleaving. The double leaf spring at the fulcrum and plastic covered stainless-steel handles ensure easy handling and a comfortable grip.
-
-
Starting at
Price on requestStarting at

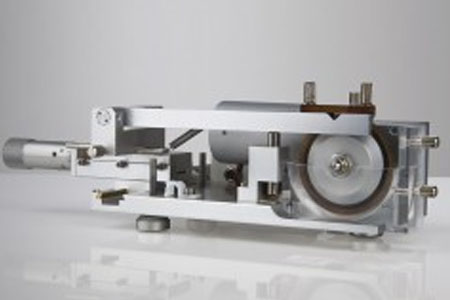

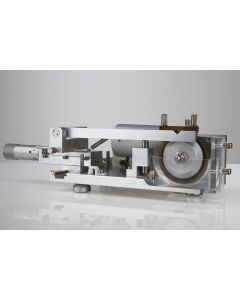

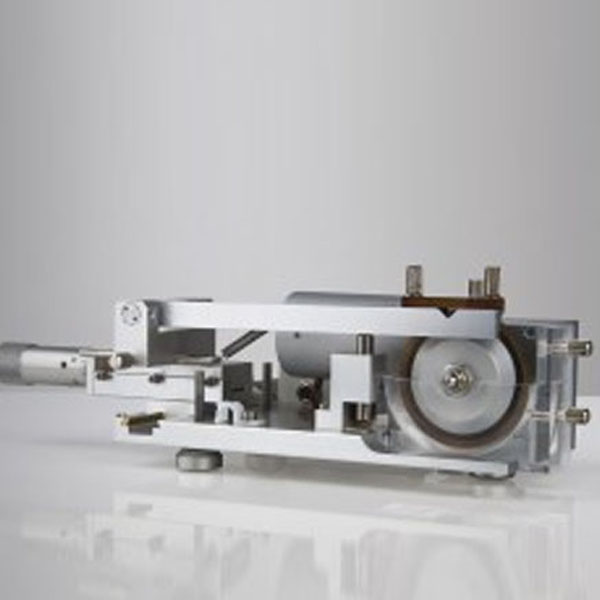

Price on requestMicroSaw is a small, versatile diamond wheel saw, to be used under a standard stereo microscope. It is a dedicated cutting device for pre-trimming of TEM and smaller SEM specimens. It is a purpose-made tool for cutting almost any solid-state materials with 0.01mm accuracy.
- Adjustable in 3 directions
- Can be used under stereo microscope
- Continuously variable rotation speed
-
Starting at
For small samples & up to 200mm wafers

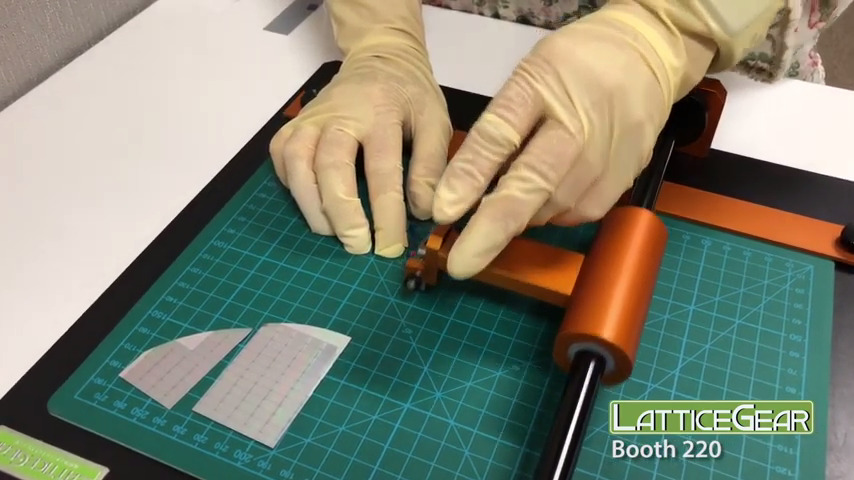

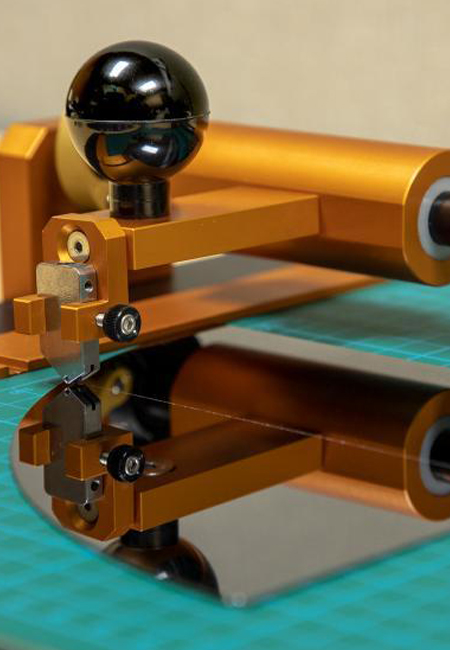

The FlexScribe Station is a fast and simple scribing workstation for dicing, downsizing, extracting and cross-sectioning of silicon wafers and other crystalline materials such as glass or sapphire. A carbide scribing wheel is mounted to a sliding scribing mechanism that guarantees straight scribes. It is suitable for various substrates from 5mm up to 200mm.
-
-
Starting at €120.00 €142.80
Specially selected glass strips for breaking glass knives with knife makers. The LKB glass hardness produces a durable and sharp edge suitable for thick, semi thin, or ultrathin sections. Available with 6.4 and 8mm thickness.
*** This glass is original from LKB stock. Very good glass quality, but the packaging is obviously old. ***
-
€79.00 €94.01

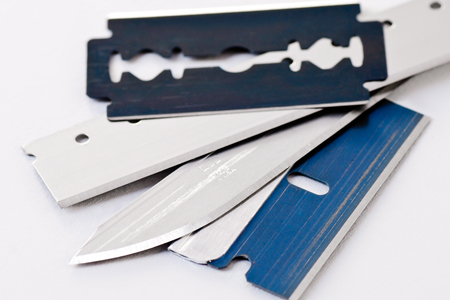

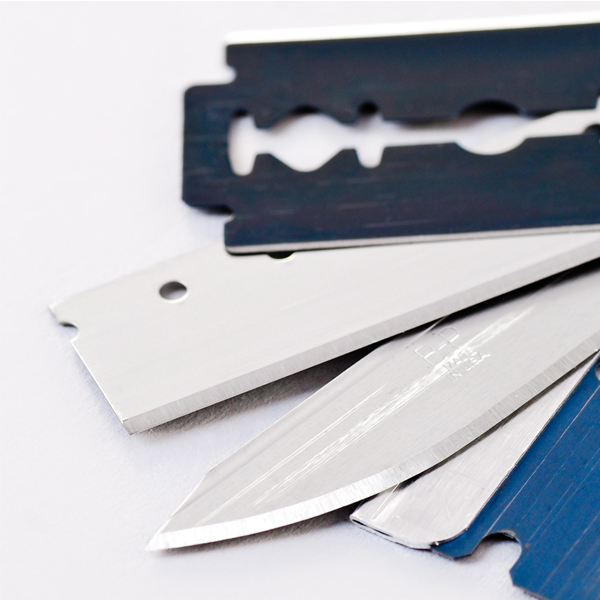

Blade for applications where extremely thin, high-quality sections are required. Suitable also for skin biopsy. Short trimming time and increased durability. With an angle of 30°.
-
-
€79.00 €94.01

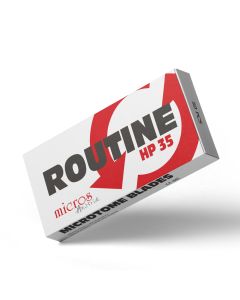

Robust universal blade designed for daily routine, with excellent sharpness and durability. All-purpose, even for difficult tissue. Teflon coated, giving this blade an excellent durability. With an angle of 35°. Also suitable for cryostat cuttings.
-
-
€79.00 €94.01
Universal blade with plasma coating for daily routine, suitable for all types of tissue. Especially suitable for ribbon sectioning, excellent sharpness, even with very thin cuts. All-rounder with unique hardened blade cutting edge, excellent durability. With an angle of 35°.
-
-
Starting at
Price on requestStarting at
Price on requestThe FlipScribe is a manual scribing tool for backside scribing of substrates (e.g. wafer) and allows viewing of the substrate front side for accurate adjustment of the scribing position. It is a compact, stable and precise tool for fast scribing and cleaving and is suitable for a variety of materials: e.g. Si, sapphire, GaN, glass, SiC. The maximum substrate size is a 4 inch / 100mm wafer.
-
-
€617.00 €734.23These knives successfully replace glass knives and razor blades in routine histology and applications such as block facing, trimming blocks or sectioning hard samples. Tungsten carbide knives fit in the glass knife holders of most (ultra-) microtomes. For section thickness from 2µm to 15µm.
-
Starting at €37.50 €44.63

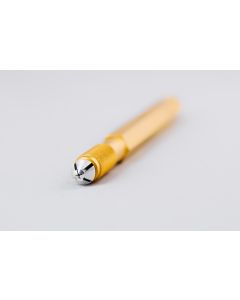

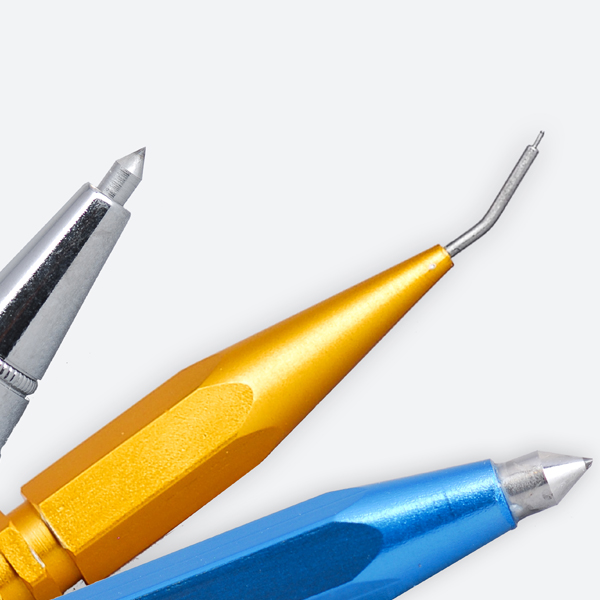

High-precision, lightweight and versatile pin vise handle for diamond scribers and styli made of high quality gold-anodized aluminum. The hexagonal handle is 8mm wide and 100mm long (total length with clamp: 115mm). The serrated part of the handle supports a non-slip and safe handling of this precision tool.
With the standard collet chuck a selection of diamond scribing pins up to 2mm width can be clamped. A collet adapter allows clamping of thinner pins (up to 0.8mm).
-
-
Starting at €48.30 €57.48

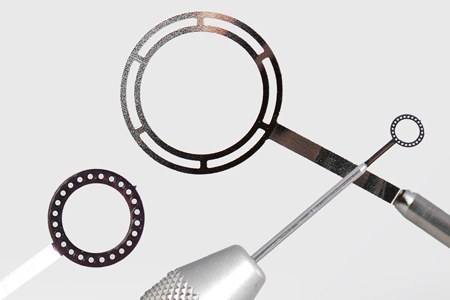

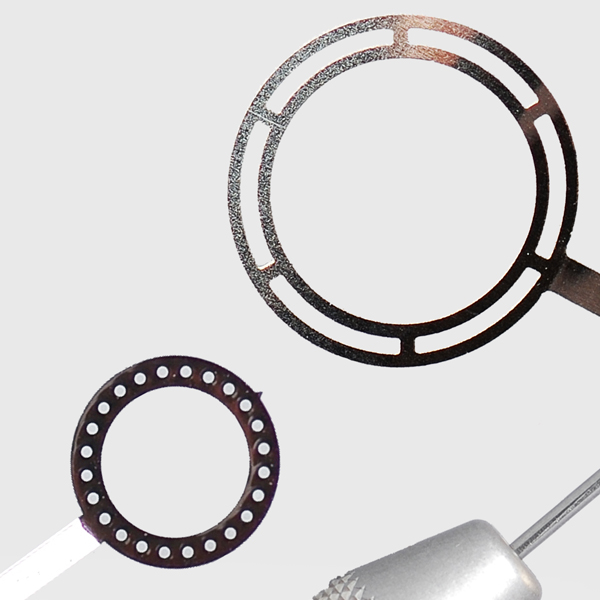

For large sections. Using this Perfect Loop, you can place your large sections, cut on the ultramicrotome, easily on the grid mesh without creases. -
Starting at €391.20 €465.53
A complete set of tools for clean cleaving of wafers into strips and small pieces. With this set good cut cross-sections are achieved. The Wafer Cleaving Kit Standard consists of three diamond scribers, tweezers, a small and large (optional) cutting mat and a pair of pliers.
-
-
The Wafer Cleaving Kit XL contains all components of the Wafer Cleaving Kit Standard (E7642) and in addition the Lattice Scriber with a premium quality diamond tip and a pair of small sample cleaving pliers.
-
-
Starting at €53.30 €63.43
For ultra thin sections. Using this Perfect Loop, you can place your thin sections, cut on the ultramicrotome, easily on the grid mesh without creases.

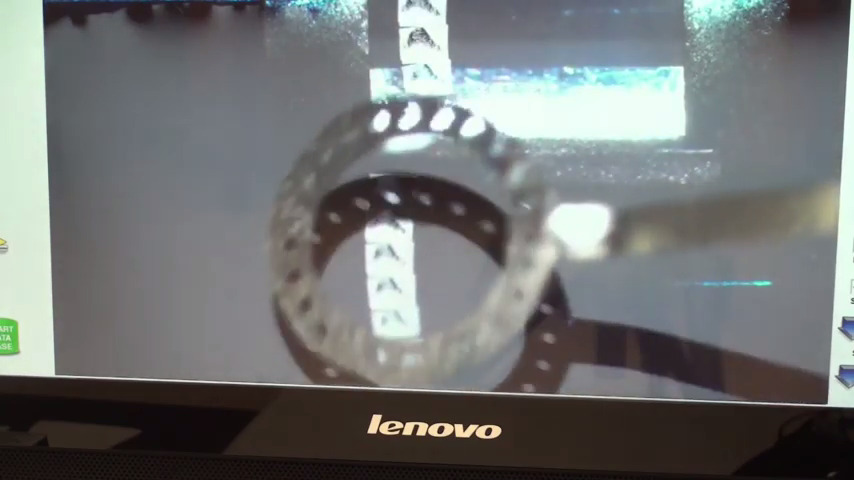

Section Pick-up with The Perfect Loop
-
-
Reusable boats are made from anodized aluminum for wet-cutting with glass knives for semi- and ultra-thin sectioning. A set screw allows attachment to the glass knife. The area where the glass knife will be attached, is cut to fit to the width of the knife and is cushioned by silicone rubber to ensure a tight seal and no leakage.
-
-
Starting at €18.30 €21.78
Disposable plastic boats for wet-cutting with glass knives for semi- and ultra-thin sectioning. The boats can easily be slipped on glass knives. Hot melted wax or nail polish can be used to seal the boat on the glass knife. -
-
€81.50 €96.99The CleanBreak 6” wafer pliers are a simple and clean way to cleave (post scribe) wafers, wafer strips and smaller pieces. They have a jaw opening of ¾" (1.9 cm). The CleanBreak pliers come with a set of replaceable jaws to maintain the best cleaving performance.
-
-
€262.40 €312.26This is the best scriber you'll ever find for scribing semiconductor wafers. This custom scriber has an eight point truncated diamond tip that can be used for both toe and heel scribing held by robust 4" long pin vise handle.
-
-

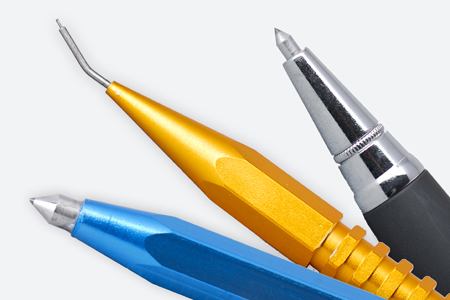

€156.20 €185.88The basic tools for wafer scribing. The Marker-Scriber Kit includes three diamond scribers for placing fine marks and scribing the wafer surface. These diamond scribers are also the replacements for those in the Wafer Cleaving Kit and XL (E7642, E7648).
-
-
Starting at €16.70 €19.87
Five layer composite cutting mat will let you cut cleanly through an object and into the mat. Great for protecting both cutting tip and working surface. Ensures the cored sample comes out completely without burrs and bits. These cutting mats are reversible, inert, self-healing and can be sterilized with ethanol. 1.5mm thick.
