Perfect Loop for ultra thin sections

For ultra thin sections. Using this Perfect Loop, you can place your thin sections, cut on the ultramicrotome, easily on the grid mesh without creases.

Section Pick-up with The Perfect Loop

Grouped product items
Product Name Qty
Perfect Loop, Handle

E70948

€102.60 €122.09
Perfect Loop, Set of Handle & Loop

D70944

€119.00 €141.61
Perfect Loop, Loop only

D70945

€89.00 €105.91
Perfect Loop, Loop only, 5 pieces

D70946

€395.00 €470.05

Product Details

Description

The Perfect Loop allows to pick up sections consistently without causing any damage to the sections. It is the only loop that is currently available where the outside diameter of the loop is the same as the grid and the inside diameter is slightly larger than the observation area of the electron microscope. The thickness is about 40µm. Due to the equal diameter of grid and loop they are attracted to one another and the water surface tension allow them to attach together. Even if the section touches the inside of the loop during blotting the touching area is minor and therefore, the section is not damaged. When the grid is removed from the loop the section remains in place. The area equals the observation field (about 2mm diameter) of the electron microscope; thus the sections can be fully observed.

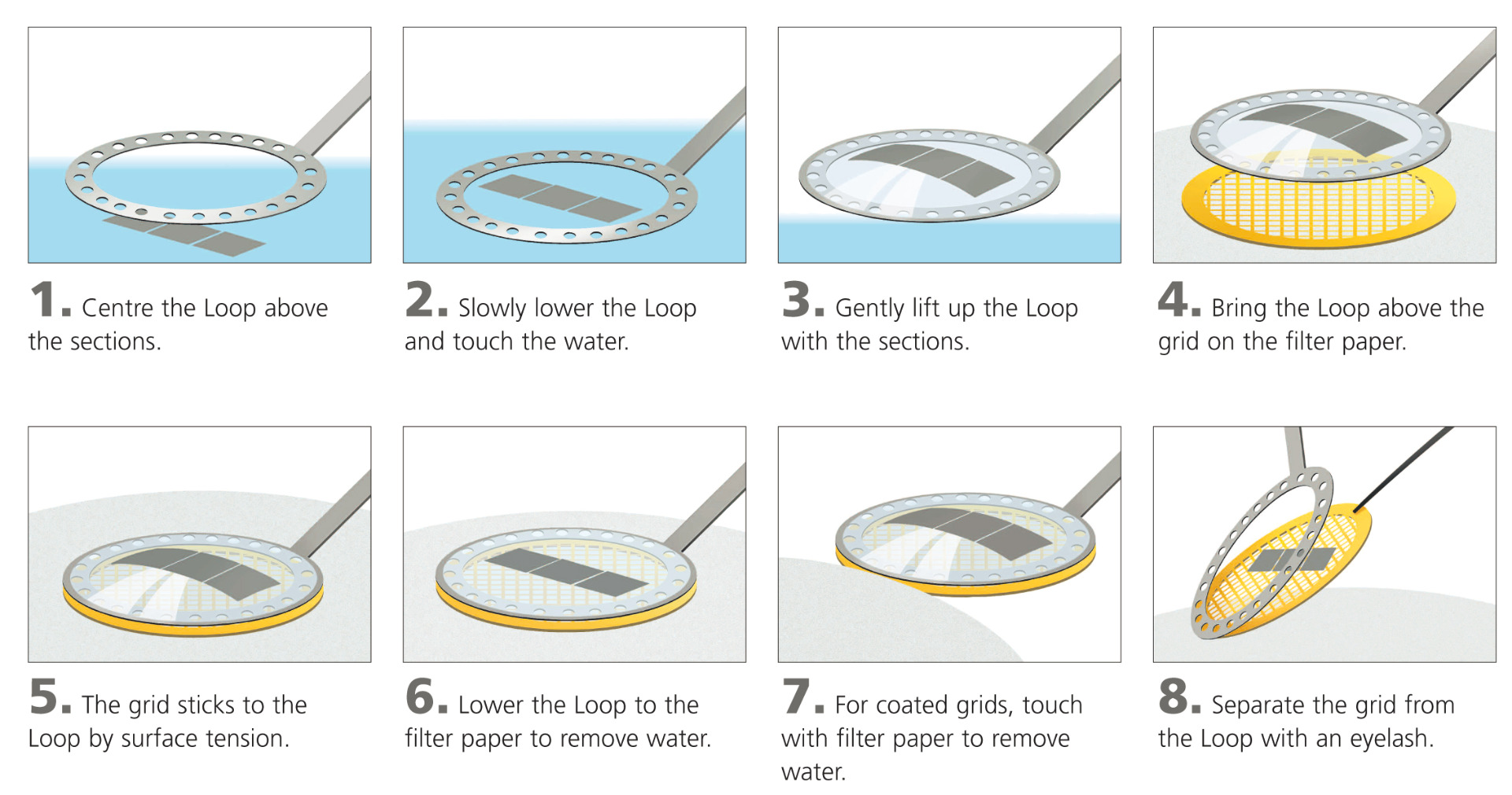

How to use the Perfect Loop

More Information

More Information
Type
Loops
Manufacturer
DiATOME
