Wafer-Mount™ 562
A dry temporary adhesive film, 0.003" thick, which can be easily cut to size with either a razor or scissor. This mount permits pre-placement of the adhesive film exactly where the user wants it. It melts at 195-210°F. After application it can be dissolved rapidly in trichloroethylene or toluene. This material is particularly useful in applications where a pre-formed adhesive film is needed to assure uniform bonding and flatness or in bonding stacks of substrates such as LCD glass slides for slicing. Sheet size 8" x 10".
Product Details
Description
Table Crystalbond and Wafer-Mount
| Name | Crystalbond™ 509 | Crystalbond™ 555 | Crystalbond™ 590 | Wafer-Mount™ 559 | Wafer-Mount™ 562 |
| Art. Nr. | E50400-X | E50401-X | E50402-X | E50403-X | E50404-X |
| Description |
Excellent adhesion to metals, glass, and ceramic Transparent in thin cross sections. Minimizes clogging of diamond tools. |
Low melting point adhesive. Soluble in hot water. Good for low shear processes. Transparent in thin cross sections. |
Excellent adhesion for cutting sub-miniature parts Slightly flexible. Soluble in methanol or non hazardous 590-S stripper. |
Semi-rigid solvent resistant plastic film with pressure sensitive soluble. Ideal for scribing wafers with vacuum hold down. |
Thermoplastic film adhesive with good adhesion to metals, glass, and ceramic excellent for mounting fragile thin substrates. |
| Form | Stick | Stick | Stick | Sheet | Sheet |
| Dimension | 2,2cm x17,8cm | 1,3cm x 17,8cm x 2,5cm | 1,6cm x 3,2cm x 19cm | 0,12mm x 25,4cm x 25,4c | 0.076mm x 20,3cm x 25,4c |
| Weight | 90g/Stick or Bar | 68g/Stick (or 68g/lump for Crystalbond TM555-HMP) | 226g/Stick | n/a | n/a |
| Flow Point (C°) | 121°C | 54°C | 150°C | n/a | 93°C |
| Viscosity, cps | 6,000 | 500 | 9,000 | n/a | n/a |
| Color | Clear yellow, amber/brown or turquoise | white | brown | clear | white |
| Solvent | Acetone or MEK/509- Stripper“ (Art.Nr. E50040-S1/S2) | Hot water | Methanol or „590-S Stripper“ (Art. Nr. E50402-S) | Acetone or MEK | Trichloroethylene or Toluene |
More Information
| Dimensions | 0.076mm x 20,3cm x 25,4cm |
|---|---|
| Flow Point (C°) | 93°C |
| Solvent | Trichloroethylene or Toluene |
| Viscosity | n/a |
| Weight | n/a |
| Color | white |
| SDS (multilingual) | E50404-10, E50404-20 |
You may be also interested in following products
-
€65.00 €77.35Art.Nr: E7647The Small Sample Cleaving Pliers cleave samples into pieces from 1 - 30mm. Nylon jaws prevent sample damage and the included scribe alignment indicators increase the accuracy of cleaving. The double leaf spring at the fulcrum and plastic covered stainless-steel handles ensure easy handling and a comfortable grip.€65.00 €77.35 -
Starting at €435.80 €518.60

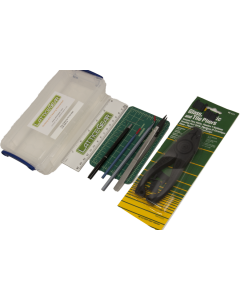

A complete set of tools for clean cleaving of wafers into strips and small pieces. With this set good cut cross-sections are achieved. The Wafer Cleaving Kit Standard consists of three diamond scribers, tweezers, a small and large (optional) cutting mat and a pair of pliers.
