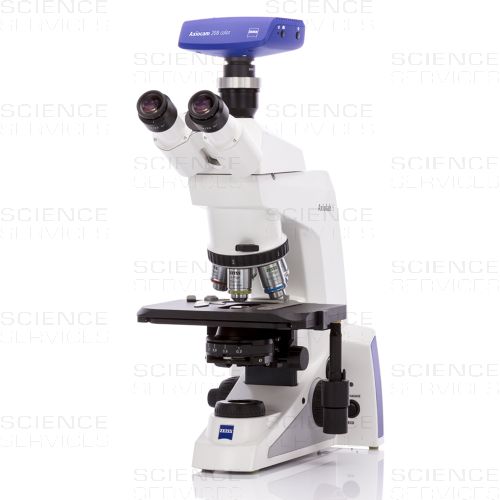

ZEISS Axiolab 5 - Microscope incl. Camera for Histology and Histopathology

The smart microscope for more efficient routine lab work

Axiolab 5 is made for the daily work in your lab. Combine it with Axiocam 212 color and take full advantage of the smart microscopy concept: you’ll be experiencing a completely new way of digital documentation. Just focus your sample and press a single button for crisp images in true color. The digital image will look exactly like you see it through the eyepieces, with all the details and subtle color differences clearly visible. Plus, Axiolab 5 automatically adds the correct scaling information to your images. All of this works without a PC or separate controller. Digital documentation has never been easier and faster.

• Automated Light Manager
• Automated Objective Detection
• Image Capture Button on Microscope Body
• 4K-Camera with Ultra HD Resolution

Configuration:

Microscope stand Axiolab 5, TL, 5x H encoded, mechanical stage 75x50 R, field of view 23, consisting of:

• Z-drive with fine drive knob left and fine drive disk right, flat with scale
• 15 mm focus lift
• Nosepiece 5x brightfield, M27 coded
• Stage and condenser carrier
• Mechanical stage 75x50 R, rackless with hardcoat anodized surface, 220x 150 mm stage plate, right drive 135 mm (extendable by 15 mm) with friction setting
• Dual specimen holder for one-hand operation, spring lever left
• Transmitted-light illumination with white LED 10W, optional for halogen reflector lamp 12V 35W
• Integrated 24V DC 60W power unit, stabilized 100...240V AC/ 50...60Hz
• Country-specific power cable
• ECO mode and light management control button
• Snap button supports ZEISS Axiocam
• USB 2.0 to PC
• Dust cover
• Filter holder in TL

Includes in addition:

• 2x Eyepiece PL 10x/23 Br. foc.
• 2x Eyepiece eyecup
• Neutral-density filter 0.06, d=32x2

Binocular phototube 30°/23 (50:50) module Consisting of:

• Binocular phototube 30°/23 (50:50), inverted image
• Camera connection with 60N port

Condenser module, achromatic-aplanatic 0.9 BF Consisting of:

• With front lens which can be switched on the right and left
• For objectives 1.0x-100x, WD=1.0mm

Objectives:

• Objective N-Achroplan 2.5x/0.07 M27 (FWD=9.8mm)
• Objective N-Achroplan 5x/0.15 M27 (FWD=12.0mm)
• Objective N-Achroplan 10x/0.25 M27 (FWD=6.5mm)
• Objective N-Achroplan 40x/0.65 M27 (FWD=0.60mm)

Axiocam 212 color microscopy camera module incl. 0.5x adapter:

• Axiocam 212 color microscopy camera
• Camera adapter 60N-C 2/3" 0.5x
• Versatile color camera for training, documentation, and routine applications with standalone functionality, USB3.0 and Ethernet connectivity with 64-bit driver software for: ZEN (blue and core), Labscope, and TWAIN plugin.
