HPF Carrier, Ø3mm, optimized for Leica, Typ A, Typ B, Typ C, Aluminium

HPF Carrier, Ø3mm, optimized for Leica, Typ A, Typ B, Typ C, Aluminium

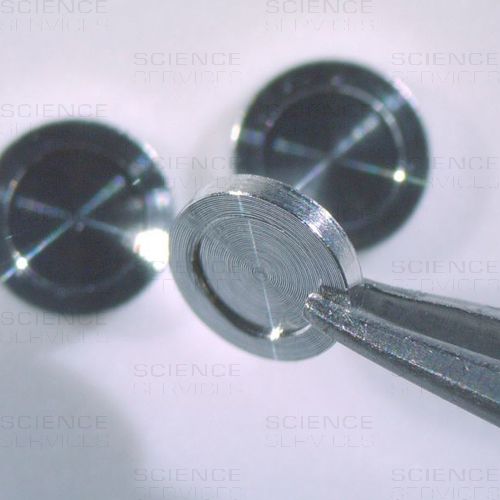

High-Pressure-Freezing (HPF) specimen carriers made of aluminium with optimized thickness for HPM100 and Leica EM ICE. The carriers (planchets) are available in Type A, B and C. Packing unit 50, 100 or 200 pieces.

Grouped product items
Product Name Qty
HPF Carrier, modified for Leica, Type A (Ø3 x 0,52mm, recess 0,1 / 0,2mm), Aluminium, 50 pieces

W1313050

€120.00 €142.80
HPF Carrier, modified for Leica, Type A (Ø3 x 0,52mm, recess 0,1 / 0,2mm), Aluminium, 100 pieces

W1313100

€230.00 €273.70
HPF Carrier, modified for Leica, Type A (Ø3 x 0,52mm, recess 0,1 / 0,2mm), Aluminium, 200 pieces

W1313200

€440.00 €523.60
HPF Carrier, modified for Leica, Type B (Ø3 x 0,52mm, recess 0,3mm), Aluminium, 50 pieces

W1314050

€104.00 €123.76
HPF Carrier, modified for Leica, Type B (Ø3 x 0,52mm, recess 0,3mm), Aluminium, 100 pieces

W1314100

€205.00 €243.95
HPF Carrier, modified for Leica, Type B (Ø3 x 0,52mm, recess 0,3mm), Aluminium, 2000 pieces

W1314200

€400.00 €476.00
HPF Carrier, modified for Leica, Type C (Ø3 x 0,52mm, recess 0,15 / 0,15mm), Aluminium, 50 pieces

W1315050

€120.00 €142.80
HPF Carrier, modified for Leica, Type C (Ø3 x 0,52mm, recess 0,15 / 0,15mm), Aluminium, 100 pieces

W1315100

€230.00 €273.70
HPF Carrier, modified for Leica, Typ C (Ø3 x 0,52mm, recess 0,15 / 0,15mm), Aluminium, 200 pieces

W1315200

€440.00 €523.60

Product Details

Description

Die Carrier sind in drei verschiedenen Typen A, B und C erhältlich, die sich in der Anzahl und Tiefe der Carrier-Vertiefungen unterscheiden.

  • Carrier Typ A: Durchm. 3 mm × 0,52 mm; Vertiefung 0,1 / 0,2 mm
  • Carrier Typ B: Durchm. 3 mm × 0,52 mm; Vertiefung 0,3 mm
  • Carrier Typ C: Durchm. 3 mm × 0,52 mm; Vertiefung 0,15 / 0,15 mm

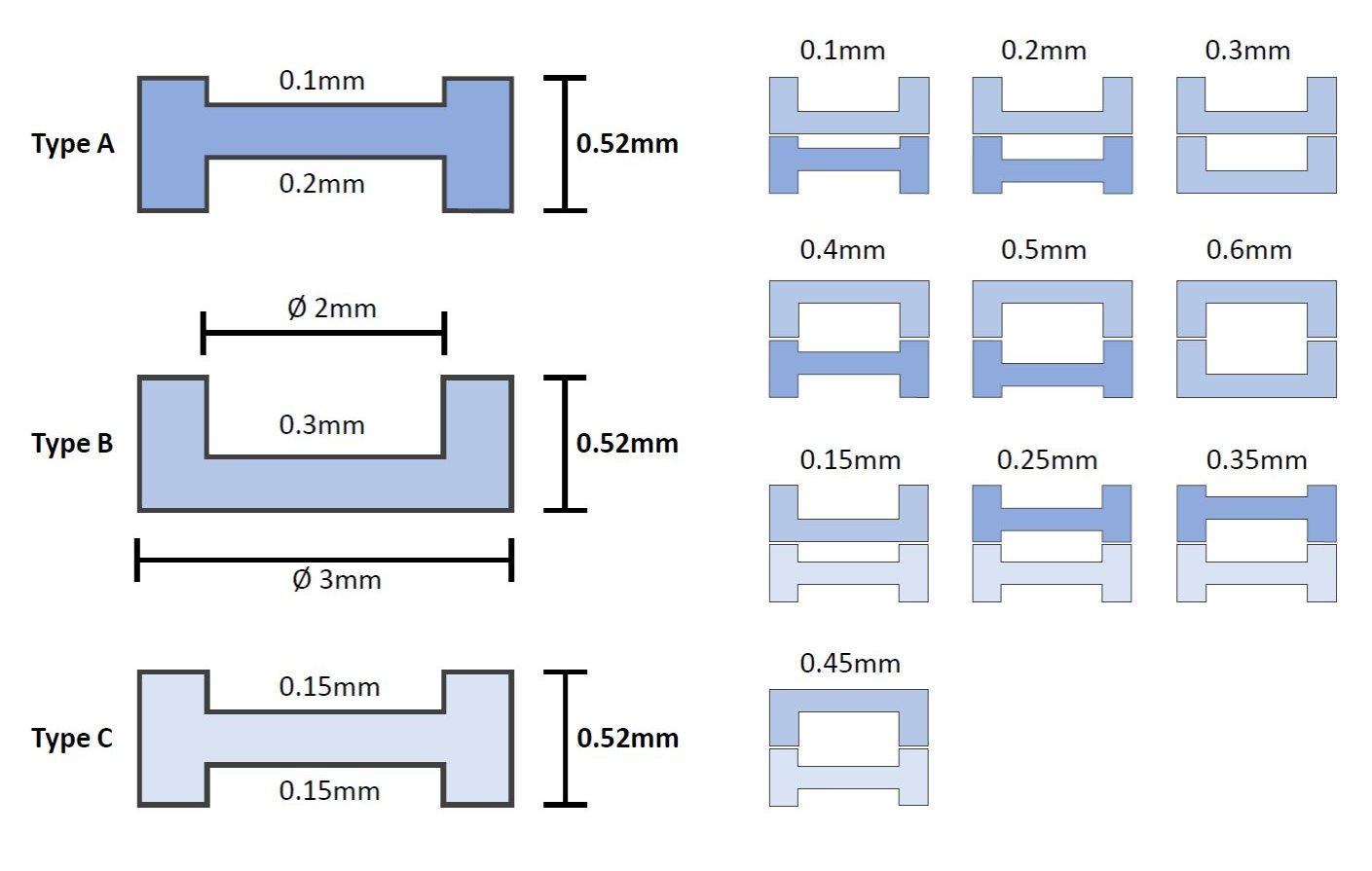

HPF Carrier - Skizze



Die Carrier sind folgende Hochdruckgefriergeräte (HPF) geeignet:
Leica HPM100, Leica EM ICE

More Information

More Information
Form
round
Application
EM
Material
Aluminum
Dimensions Diameter: 3mm, Height: 0.52mm
Packing Unit 50, 100, 200 Stück
