NIGHTSEA Add-on for Keyence VHX series, light + filter set for Z00, Z20, various wavelengths
Add-On Light and filter set for the NIGHTSEA™ Fluorescence Adapter for the Keyence VHX Series for VH-Z00, Z20 lenses. Includes LED-light cube, filter goggles and ring emission filter for VH-Z00, Z20 with color coding to differentiate between filter sets. Available for various wavelengths.
Product Details
Description
Das NIGHTSEA™ Fluoreszenz-Adaptersystem erweitert die Keyence VHX-Serie zur vielseitigen Nutzung von Fluoreszenz. Das System wird von einer wachsenden Anzahl von Keyence-Benutzern für eine Vielzahl von Anwendungen erfolgreich eingesetzt und ist für verschiedene Anregungs- und Emissionswellenlängen erhältlich.

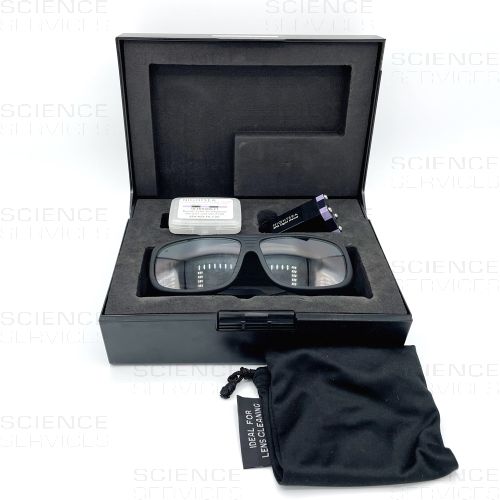

Das NIGHTSEA Add-on für die Objektive Z00, Z20, Z50 enthält:
- LED-Lichtkopf mit Anregungsfilter
- Ring-Emissionsfilter für Z00, Z20, Z50 - einfach anzubringen
- Emissionsfilter-Brille
LED-Lichtkopf und Emissionsfilter sind einfach austauschbar. Dadurch kann schnell zwischen Licht/Filter-Kombinationen gewechselt werden. Eine Farb-Kodierung gewährleistet die Verwendung der korrekten Filter/LED Kombination. Der Emissionsfilter wird an die Linse des Keyence Mikroskops angebracht, und ist einfach zu entfernen, um schnell zwischen Hellfeld- und Fluoreszenz-Ansicht zu wechseln.
Filtersätze sind für folgende Wellenlängen erhältlich:
Article-Nr. | Filtersatz |
Anregung | Emission | Fluorophores |
ESFA-KZB-LFS-UV | UV - Ultra Violett | 360-380 nm | 415 nm LP | DAPI, ... |
ESFA-KZB-LFS-VI | VI - Violett | 400-415 nm | 460 nm LP | CFP, ... |
ESFA-KZB-LFS-RB | RB- Royal Blue | 440-460 nm | 500 nm LP | EGFP, Fluorescin, Alexa488. ... |
ESFA-K-LFS-GO |
RB- Royal Blue |
440-460 nm | 500-560nm BP | EGFP, Fluorescin, Alexa488. ... |
ESFA-KZB-LFS-CY | CY - Cyan | 490-515 nm | 550 nm LP | YFP, Venus, Lucifer Yellow, ... |
ESFA-KZB-LFS-GR | GR - Green | 510-540 nm | 600 nm LP | DsRed, dTomato, Alexa568... |
Ring-Emissionsfilter:
Der Ring-Emissionsfilter ist der Größe der Objektive VH-Z00, Z20, Z50 angepasst und wird mittels Stellschrauben am unteren Teil des Objektivs montiert.
Emissionsfilter-Brille
Die Filterbrillen sind spektral auf den jeweiligen Emissionsfilter abgestimmt. Sie dienen dem Augenschutz gegen das helle Anregungslicht, sind aber auch zum Betrachten der Fluoreszenz mit dem Auge geeignet.
Leistungserwartungen
Die Mikroskope der Keyence VHX-Serie sind nicht für Fluoreszenz-Aufnahmen ausgelegt. Das NIGHTSEA Adaptersystem rüstet das System mit der Fähigkeit für Fluoreszenzaufnahmen auf, die sich für eine wachsende Anzahl von Anwendern als sehr wertvoll erweist und den Anwendungsbereich der Keyence VHX-Serie erweitert. Es ersetzt allerdings kein Fluoreszenzmikroskop.
More Information
Application |
LM
|
---|---|
Type |
Illumination
|
Packing Unit | Set |
Used with |
Stereo Microscopes
|
Manufacturer |
NIGHTSEA
|
