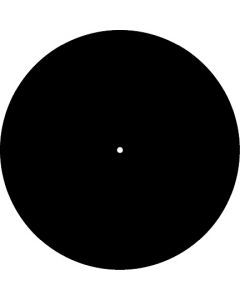

C5, Disc Aperture for electron microscopes, D 5µm

PY04D00902

Material: Cu, Aperture Diameter: 5µm, Dimensions: 16mm / 3mm (Foil), filmthickness: 0,008mm
€248.30 €295.48

Product Details

Description

Pinholes - C Serie

Prepared in pure copper foil. Very high roundness edge definition. Blackened on one surface. Mounted in black anodized aluminium discs. Mounted in a recessed hole in an anodised holder.

Uses:

  • Spatial filtering
  • Controlling diameter of light beams
  • creating point light sources
  • image analysis etc.



Range                Tolerance

8µm                     +/- 0,5µm


Note: Dust particles can create noticeable aperture problems. Therefore store in dust free envelopes and, when necesassary, clean ultrasonically.



More Information

More Information
Type
Disc Apertures
Aperture Diameter
0-50µm
Dimensions 16mm / 3mm (Foil)
Foil Thickness 8µm
Material
Cu
Packing Unit each
Manufacturer
Graticules Optics
