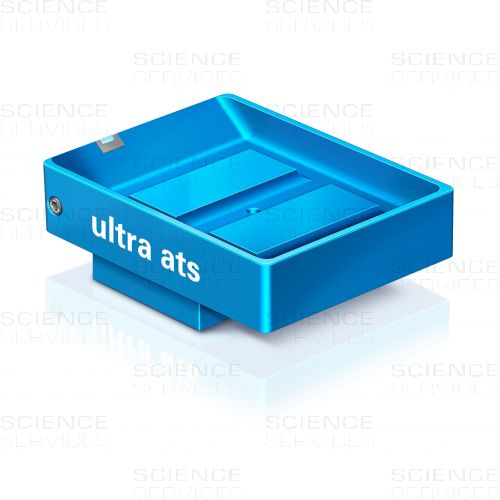

DiATOME Diamond Knife, ultra ats 35° 3mm

The DiATOME ultra ats was developed for mounting series of ultra-thin sections directly on (conductive) substrates such as silicon wafers or ITO slides. Using Array Tomography 3D data sets of the section series can be recorded by subsequent SEM imaging. The large knife boat is equipped with a water outlet at the bottom.
Grouped product items
Product Name Qty
DiATOME Diamond Knife, ultra ats 35° 3mm

DUATS3530

DiATOME Diamond Knife, ultra ats 35° 3mm, resharpen

RDUATS3530

Product Details

Description

References

A targeted 3D EM and correlative microscopy method using SEM array tomography. Burel A, Lavault MT, Chevalier C, Gnaegi H, Prigent S, Mucciolo A, Dutertre S, Humbel BM, Guillaudeux T, Kolotuev I. Development. 2018 Jun 21;145(12). pii: dev160879. doi: 10.1242/dev.160879.

More Information

More Information
Type
ats
Additive
wet
Angle
35°
Blade Size
3,0mm
Cutting Range
10-100nm
Packing Unit each
Temperature Range
RT
