Film Reticle, horizontal, 10mm, customizable size, 10 pieces
PY01AFS201

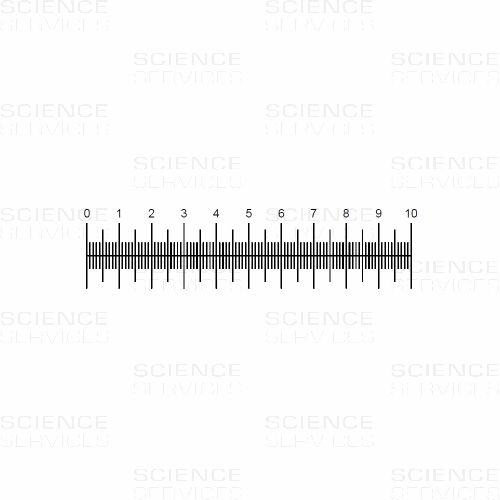

Film Reticle with horizontal 10mm scale in 0.1mm divisions. The reticle is printed on polyester film and can be cut to size to fit eyepieces of various diameters up to 27mm. It can be used for several different applications. Contains 2 strips with 5 film reticles each per pack.
€94.40
€112.34
Product Details
Description
Each reticle contains circles marked around the scale image to give guidance for cutting (into size) to fit the respective eyepiece. The spacing of the images allows diameters up to 27mm (to be cut). Guide circles for 16mm, 19mm, 21mm and 24mm. The overall size of film is 150mm x 30mm x 0.18mm thick.
Key Features
- Reticle on polyester film
- Horizontal scale 10mm in 0.1mm divisions
- 10 film reticles per pack
- Dimensionen per strip: 150mm x 30mm x 0.18mm
These film reticles are being used in many different applications:
- As reticles in microscope eyepieces
- As a calibration scale on the microscope stage
- As a simple measurement when using magnifiers
- As a cover glass for direct measurements
More Information
| Eyepiece Diameter |
xxmm
|
|---|---|
| Type 2 |
Scales
|
| Type |
Size and Position
|
| Scala Size | 10mm |
| Subdivisions | 0,1mm |
| Manufacturer |
Graticules Optics
|
