HPF Carrier, 4,6mm diameter for HPM 010, Type A, Type B, Type C, Aluminium

HPF Carrier, 4,6mm diameter for HPM 010, Type A, Type B, Type C, Aluminium

High-Pressure-Freezing (HPF) specimen carriers made of aluminium suitable for the HPM 010 with 4,6mm diameter holder

The carriers (planchets) are available in Type A, B and C.

Grouped product items
Product Name Qty
HPF Carrier, 4,6mm diameter, Type A (4,6 x 0,62mm, recess 0,15 / 0,25mm), Aluminium, each

AB300301

€5.00 €5.95
HPF Carrier, 4,6mm diameter, Type B (4,6 x 0,62mm, recess 0,40mm), Aluminium, each

AB300302

€5.00 €5.95
HPF Carrier, 4,6mm diameter, Type C (4,6 x 0,62mm, recess 0,10 / 0,30mm), Aluminium, each

AB300303

€5.00 €5.95

Product Details

Description

The specimen carriers are available in three different types A, B and C, which differ in the amount and depth of the carrier cavity.

  • Specimen carrier Type A: dia. 3mm x 0.50mm; Cavity 0.1/0.2mm
  • Specimen carrier Type B: dia. 3mm x 0.50mm; Cavity 0.3mm
  • Specimen carrier Type C: dia. 3mm x 0.50mm; Cavity 0.15/0.15mm

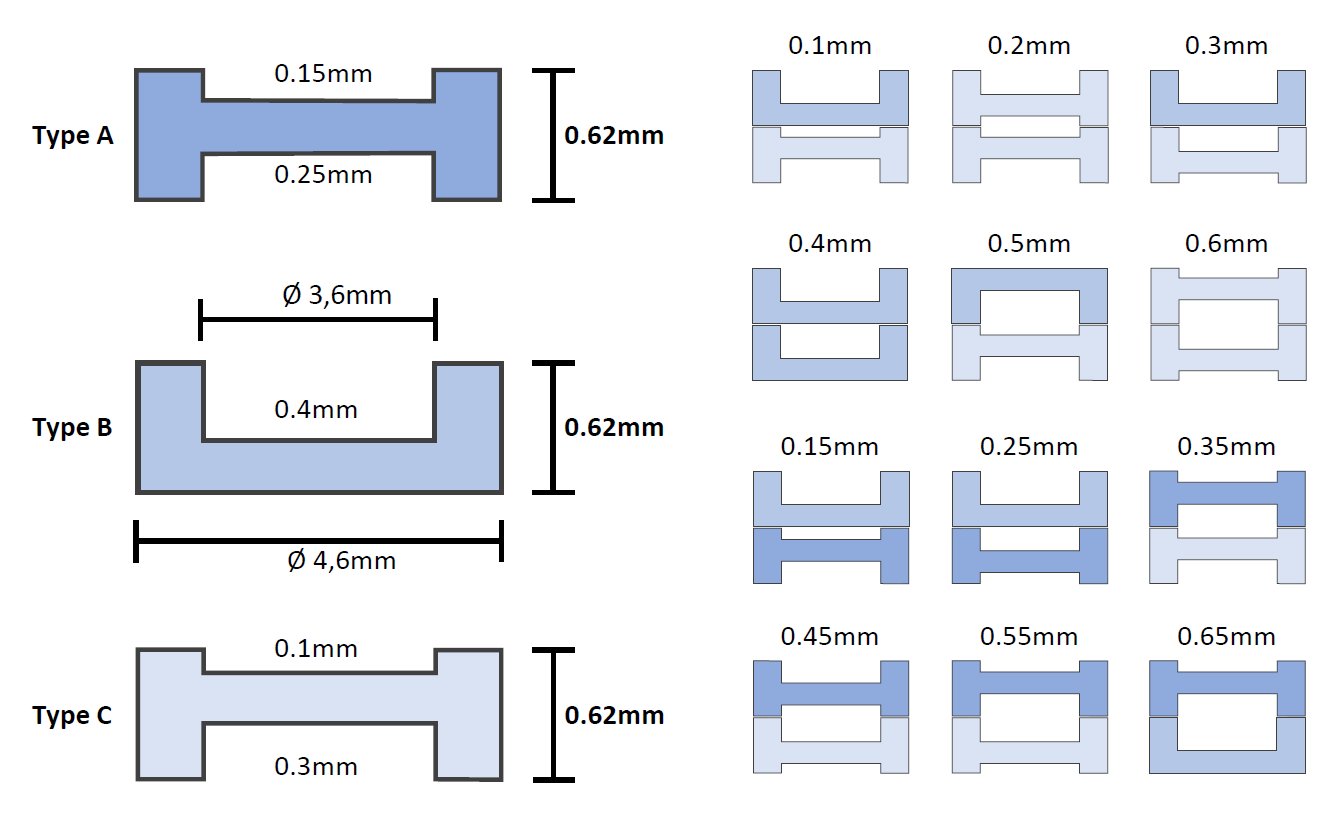

The picture above shows some examples how to stack the carriers, more and other combinations are possible.

The carriers are suitable for the ABRA Fluid HPM 010 High-Pressure-Freezer with 4,6mm holder.



More Information

More Information
Application
EM
Dimensions Diameter: 4,6mm, Height: 0,62mm
Material
Aluminum
Packing Unit each
