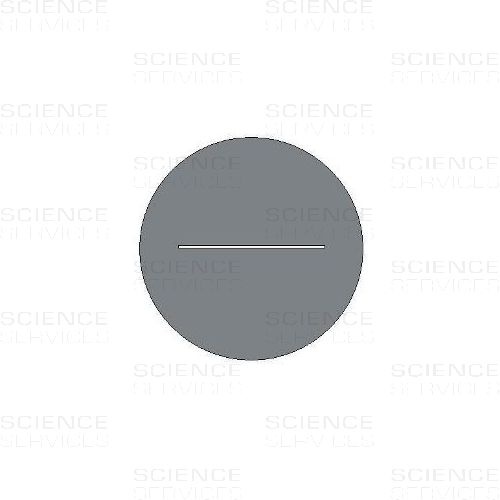

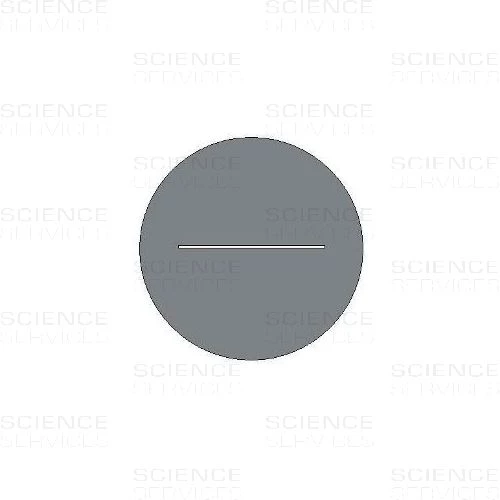

LG10, Optical Slit Aperture, Chrome on Glass, 10x10.000µm
Material: Chrome/Glass, Rectangular Slit: 10x10000µm, Dimensions: 16mm (Foil)
Opaque chrome on B270 Glass Clear Slit 10µm wide by 10mm long
Chrome optical density +4.0 16mm Diameter B270 Crown Glass substrate
Chrome optical density +4.0
16mm Diameter B270 Crown Glass substrate
Photo-etched in chrome on optical glass. Spectrophotometer entrance and exit slits. Imaging and alignment applications. Allows use of longer slits then air type. Some transmission frequency limitations imposed by substrate.
Note: The efficiency of such fine apertures can be noticeably affected by dust particles. They should be stored in dust free envelopes and, when necessary, cleaned ultrasonically.
