PS20 - Universeller Eichstandard mit 13 Teststrukturen, eingravierte Seriennummer - Box

PS20 - Universal Calibration Slide with 13 image areas, serial number

PS20 Universal Calibration Slide for machine vision, 3D scanner and image analysis systems with engraved serial number. 13 different calibration structures. UKAS certificate available also for individual patterns, please advise for which structures.

Grouped product items
Product Name	Qty
PS20 - Universal Calibration Slide with 13 image areas, serial number, 1,5mm thick PY68047-P20 €542.40 €645.46
PS20 - Universal Calibration Slide with 13 image areas, serial number, 1mm thick PY68047-P20T €640.90 €762.67

Further Information

Product Details

Description

Universal Calibration Slide – PS20

Microscopes and image analysis systems are becoming increasingly complex to calibrate, requiring multiple image patterns to satisfy numerous parameters.

The PS20 calibration slide was designed as a versatile and cost-effective solution for the measurement calibration of microscopes and machine vision systems. The slide features 13 different image areas to satisfy a wide range of calibration parameters: concentric circles and squares, line gratings, grids and dot arrays, square root 2 progression of dot and square blocks, and coarse and variable fine linear scales. Each glass slide has a unique permanent serial number and can be supplied with an internationally traceable certificate of calibration on individual or all patterns.

Starting from a fixed 'Datum Point' mark, each individual pattern or array can be located using X, Y, coordinates. The ID letter can be used to identify the patterns.

General Tolerance (in µm)

Feature size	≤ 10	10 - 50	50 - 127	127 - 250	>250
Tolerance	0,5	1,0	1,3	1,9	2,54

Specifications

Overall Accuracy	0.5µm
Coating	Enduring evaporated chrome image
Optical density	>2,54
Substrate	Soda Lime Glass
Size	76mm x 25mm x 1,5mm
Package	Polished wooden case

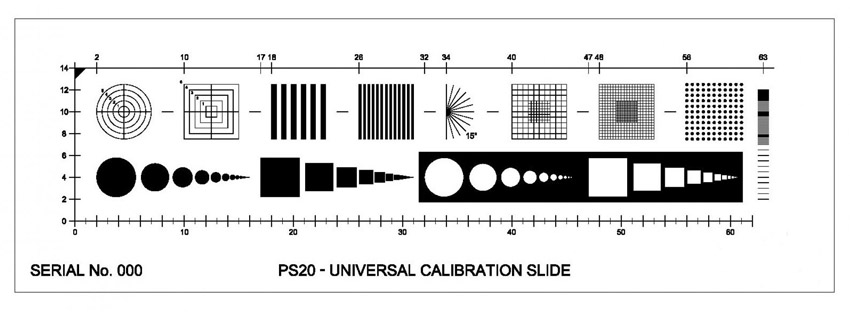

Patterns of the PS20 Universal Calibration Slide

If you require a calibration certificate for one, several or all patterns A-N, please state the ID so that we can provide you with a corresponding quotation.

ID	Pattern Name	Location	Description
A	Concentric Circles	X =2 Y = 10	1, 2, 3, 4, 5mm Circles with Cross Line and circle identifier. Line width 20µm
B	Concentric Squares	X=10 Y=10	1, 2, 3, 4, 5mm Squares with Cross Line and circle. Line width 20µm
C	Line Grating 25 lines/mm	X=18 Y=10	12.5 Line Pairs per mm (40µm line 40µm space)
D	Line Grating 100 lines/mm	X=26 Y=10	50 Line Pairs per mm (10µm line 10µm space)
E	Half Protractor	X=34 Y=10	15° Spacing, Line width 20µm
F	Grid Array Coarse	X=40 Y=10	5mm square array with 0.5mm divisions + central 2mm square with 0.25mm divisions. Line width 20µm
G	Grid Array Fine	X=48 Y=10	5mm square array with 0.1mm divisions + central 2mm square with 0.05mm divisions. Line width 8µm
H	Dot Array	X=56 Y=10	Dot diameter 0.25mm, dot centre to centre spacing 0.05mm. 11x11 grid = 121 dots
I	Geometric progression Opaque Dots	X=2 Y=4	Root 2 progression of 21 dots or square shapes, from 3.5µm to 3.5mm. For edge threshold detection for correct size measurements or shape size comparison. Dot/square size in mm: 3.5833; 2.5338; 1.7917; 1.2669; 0.8959; 0.6335; 0.4479; 0.3167; 0.2240; 0.1584; 0.1120; 0.0792; 0.0560; 0.0396; 0.0280; 0.0198; 0.0140; 0.0099; 0.0070; 0.0049; 0.0035
J	Geometric progression Opaque Squares	X=17 Y=4
K	Geometric progression Clear Dots	X=32 Y=4
L	Geometric progression Clear Squares	X=47 Y=4
M	Vertical Scale Fine Variable	X=63	10mm Scale 5mm in 0.5mm divisions. Line width 20µm 4mm in 0.1mm divisions. Line width 10µm 1mm in 0.01mm divisions. Line width 3 µm
N	Horizontal Scale Coarse	X=0 Y=0	62mm Scale in 2mm and 1mm divisions. Line width 20µm
