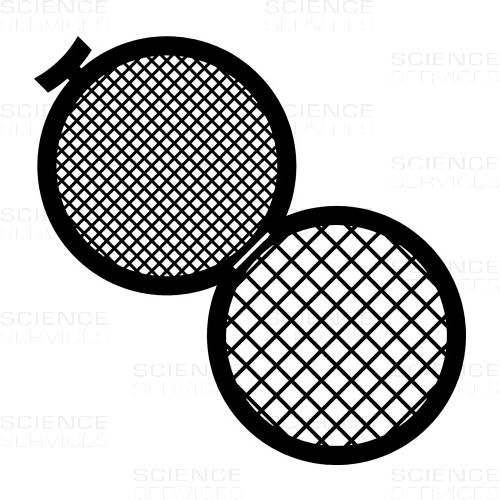

TEM Grids, 100/200 Mesh, Folding Grids, Cu, 100 pieces
GD1020-Cu
Double grids, offering a combination of mesh support values, are used primarily in metallurgical applications for supporting thin metal foils. Two grids are joined by a thin 'hinge', allowing one grid to be folded on top of the other, trapping the specimen between them.
€57.80
€68.78
Product Details
More Information
| Material Symbol | Cu |
|---|---|
| bar size | 50/40µm |
| Centre Mark |
no
|
| Type |
Folding Grids
|
| Grid Size |
3,05mm
|
| Hole Size | 200/85µm |
| Material |
Copper
|
| Mesh Size |
100/200 Mesh
|
| Mesh Style |
square
|
| Packing Unit | 100 pieces |
| Pitch | 250/125µm |
| Rim Mark |
no
|
| Manufacturer |
Gilder
|
