Resolution Standards

(7)
    • Price on request
      Price on request

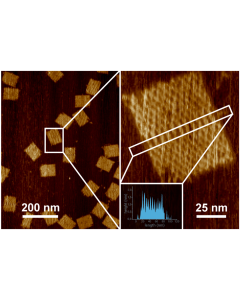

      With GATTA‑AFM nanorulers, now adequate test samples are finally available. The GATTA-AFM nanorulers represent accurate and highly parallelized structures and are therefore perfectly suited to optimize and test the resolution of atomic force microscopes.

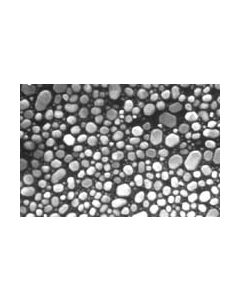

      • For resolution test of SE and BSE imaging and also for chemical mapping in high-resolution systems such as an Auger scanning instrument. Gold particle range from 5nm to 150nm approximately.

        • Starting at €163.90 €195.04

          Starting at €163.90 €195.04

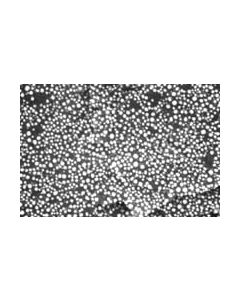

          For very high resolution performance testing this specimen has a smaller gold particle size ranging from <3nm to 50nm as compared to the high resolution test above. Ideal for testing at instrument magnifications of 50,000x and above.

          • Starting at €271.70 €323.32

            Starting at €271.70 €323.32

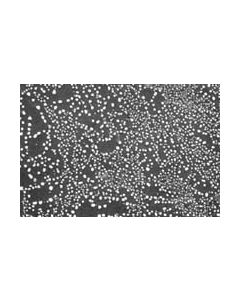

            With gold particles ranging from <2nm to 30nm, this test is suitable for ultra high resolution SEM tests such as field emission electron source. A magnification of at least 80,000x is required for this test.

            • Price on request
              Price on request
              TipCheck exploits reverse imaging to provide a fast and simple way to assess new and used SPM tips without the need for SEM inspection.
              • Price on request
                Price on request

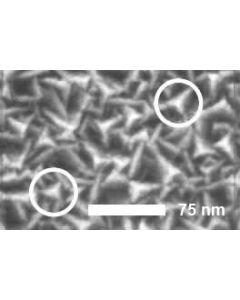

                The Nioprobe device is used to determine the shape at the very apex of the tip probe for microscopy measurements.
                • Price on request
                  Price on request

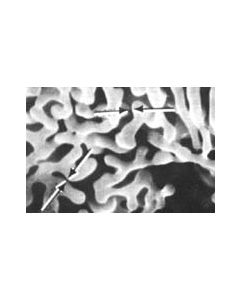

                  The various spacings created by the dendritic structure give the gap test, and the topographical arrangement of the dendrites leads to the gray level test. Probe Size range of 25nm to 75nm.
