Rapid-Core Sampling Tool
Rapid-Core punches are a new revolutionary multi-purpose sampling tool, designed with retractable cutting cannula for easy handling. Rapid-Core punches are efficient, safe, fast and precise! Individually packaged.
Rapid-Core is the official successor of the discontinued Harris Uni-Core punches.
Product Details
Description

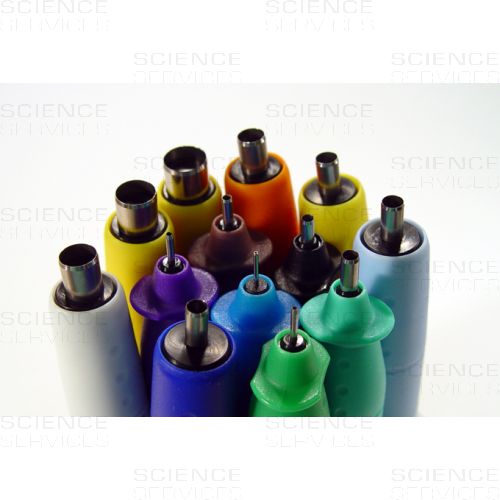

The Rapid-Core consists of a razor sharp stainless steel cutting tip, designed to cut, retrieve and store cored samples from source materials such as skin, tissue, gels, paper, cloth, leaves, paint chips, films or other thin, soft substrates.
The Rapid-Core is well known and recommended as the special DNA sampling tool and is ideal for forensic and laboratory sampling purposes. Each Rapid-Core is individually packaged and ethylene oxide sterilized.
Features
- Pen-like Actuator for mechanical extension of the cannula from the protective casing
- Self-contained Plunger for effortless ejection of tissue samples from the tip
- Sterilization: EO (Ethylene Oxide)
Overview
| Sku.# | Type (mm) | ID (mm) | OD (mm) | Wall thickness (mm) |
| E69039-03 | 0.35 | 0.33 | 0.63 | 0.15 |
| E69039-05 | 0.5 | 0.50 | 0.80 | 0.15 |
| E69039-07 | 0.75 | 0.77 | 1.07 | 0.15 |
| E69039-10 | 1.0 | 0.96 | 1.26 | 0.15 |
| E69039-12 | 1.2 | 1.2 | 1.5 | 0.15 |
| E69039-15 | 1.5 | 1.5 | 1.9 | 0.20 |
| E69039-20 | 2.0 | 2.0 | 2.4 | 0.20 |
| E69039-25 | 2.5 | 2.5 | 2.9 | 0.20 |
| E69039-30 | 3.0 | 3.0 | 3.4 | 0.20 |
| E69039-35 | 3.5 | 3.5 | 3.9 | 0.20 |
| E69039-40 | 4.0 | 4.0 | 4.4 | 0.20 |
| E69039-50 | 5.0 | 5.0 | 5.5 | 0.25 |
| E69039-60 | 6.0 | 6.0 | 6.5 | 0.25 |
| E69039-70 | 7.0 | 7.0 | 7.5 | 0.25 |
| E69039-80 | 8.0 | 8.0 | 8.5 | 0.25 |
More Information
| Type |
Punches
|
|---|---|
| Material Type | PP - body, 304 stainless steel - cutting cannula (tip) |
| Packing Unit | each |
| sterile |
yes
|
-
Starting at €17.30 €20.59

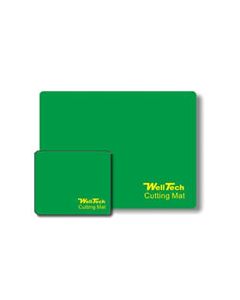

Five layer composite cutting mat will let you cut cleanly through an object and into the mat. Great for protecting both cutting tip and working surface. Ensures the cored sample comes out completely without burrs and bits. These cutting mats are reversible, inert, self-healing and can be sterilized with ethanol. 1.5mm thick.Starting at €17.30 €20.59
